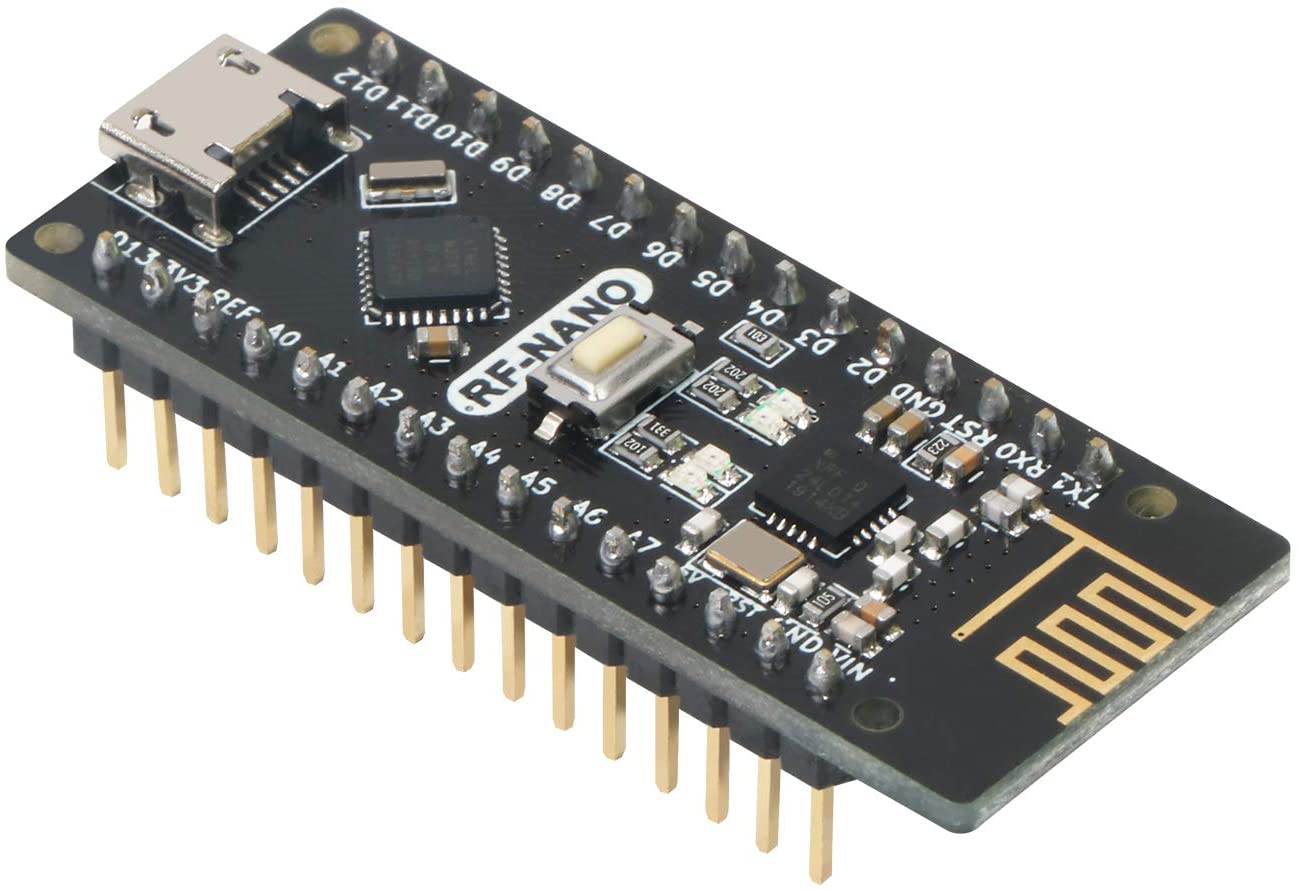

RF Integrated Nano V3.0

৳ 1,700.00

RF-Nano: Note: Please use Arduino IDE 1.8.6 or higher version, First, install the CH340 driver,then follow this selection path in Arduino IDE:Tools – Board“Arduino Nano” Processor “ATmega328P” Intruction:
The Nano Board has a number of facilities for communicating with a computer, another Arduino, or other microcontrollers.
The ATmega328P provide UART TTL (5V) serial communication, which is available on digital pins 0 (RX) and 1 (TX). An FTDI FT232RL on the board channels this serial communication over USB and the FTDI drivers (included with the Arduino software) provide a virtual com port to software on the computer.
The Arduino software includes a serial monitor which allows simple textual data to be sent to and from the Arduino board.
The RX and TX LEDs on the board will flash when data is being transmitted via the FTDI chip and USB connection to the computer (but not for serial communication on pins 0 and 1).
A SoftwareSerial library allows for serial communication on any of the Nano’s digital pins. The ATmega328P also support I2C (TWI) and SPI communication. The Arduino software includes a Wire library to simplify use of the I2C bus. To use the SPI communication, please see ATmega328P datasheet.

Microcontroller ATmega328P
Nrf24L01+ 2.4G wireless
Architecture AVR Operating
Voltage 5 V Flash
Memory 32 KB of which 2 KB
used by bootloader SRAM 2 KB Clock Speed 16 MHz
Analog I/O Pins 8 EEPROM 1 KB
DC Current per I/O Pins 40 mA (I/O Pins)
Input Voltage 7-12 V
Digital I/O Pins 22 PWM
Output 6 Power
Consumption 19 mA PCB

Out of stock


nRF24L01 Wireless Module ATmega328P Micro-Controller Board Compatible with Nano V3.0

Additional information

Weight .007 kg
Dimensions 4.8 × 1.8 cm
