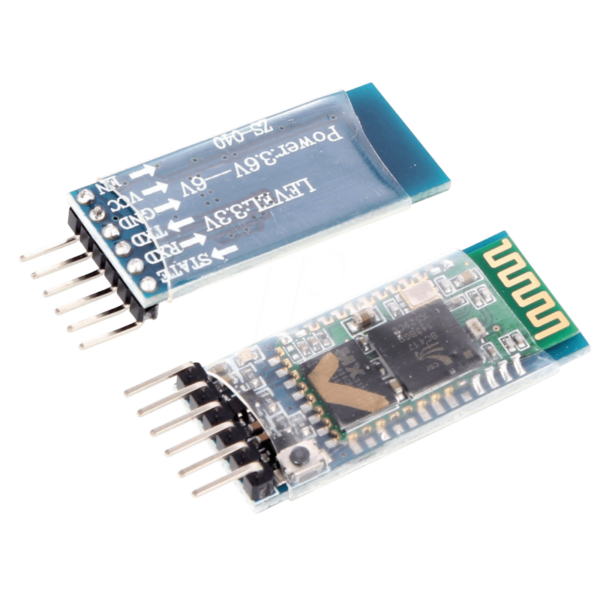

HC05 Serial Port Bluetooth Module

৳ 260.00

The HC-05 is a very cool module which can add two-way (full-duplex) wireless functionality to your projects. You can use this module to communicate between two microcontrollers like Arduino or communicate with any device with Bluetooth functionality like a Phone or Laptop. There are many android applications that are already available which makes this process a lot easier. The module communicates with the help of USART at 9600 baud rate hence it is easy to interface with any microcontroller that supports USART. We can also configure the default values of the module by using the command mode. So if you looking for a Wireless module that could transfer data from your computer or mobile phone to microcontroller or vice versa then this module might be the right choice for you. However do not expect this module to transfer multimedia like photos or songs; you might have to look into the CSR8645 module for that.



SKU: 00033 Category: Tags: , , ,

Description

You need to attach this to a computer. You can either solder a 6-pin header or individual wires.Unit comes without a connector. Please see related male and female pins below. And now, we provide HC-05/06, HC-05 could be setting to Master or Slave by user. HC-06 just be Master or Slave, that could be customized. This module default is HC-06 with Slave mode.

Note:

Be paired must Master devices and Slave devices each other.Master and Master devices, Slave and Slave devices can’t paired each other. The HC-06 (just suppy slave mode and more easy) Slave mode could paired with PDA, PC etc.

HC-05 Default Settings

Default Bluetooth Name: “HC-05”

Default Password: 1234 or 0000

Default Communication: Slave

Default Mode: Data Mode

Data Mode Baud Rate: 9600, 8, N, 1

Command Mode Baud Rate: 38400, 8, N, 1

Default firmware: LINVOR

Specifications:

  • Bluetooth protocal:  Bluetooth Specification v2.0+EDR
  • Frequency:  2.4GHz ISM band
  • Modulation:  GFSK(Gaussian Frequency Shift Keying)
  • Emission power:  ≤4dBm, Class 2
  • Sensitivity:  ≤-84dBm at 0.1% BER
  • Speed: Asynchronous:  2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
  • Security:  Authentication and encryption
  • Profiles:  Bluetooth serial port
  • Power supply: +3.3VDC 50mA
  • Working temperature: -20 ~ +75 Centigrade
  • Dimensions: 15.2×35.7×5.6mm

Documents:
